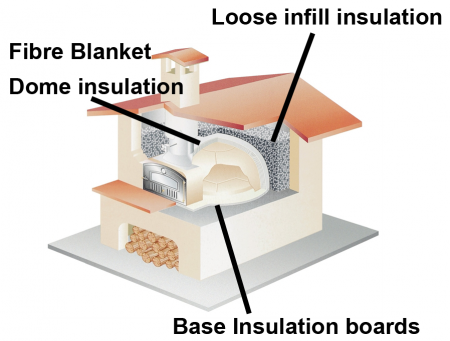

 Pizza Oven Insulation kits– BASE INSULATION BOARDS
Used between oven base and support structure

Skamolex Blue Calcium Silicate board – 25 mm Base insulation
The ultimate thermal insulation between oven base and support structure, this board is all that’s required between the hot oven base and the concrete support to prevent heat loss downwards.
Thermal conductivity 0.1W/mK at 400ºC* (Very good)
FOR VERY BEST THERMAL PERFORMANCE – you could double up to 50mm base insulation

– FIBRE BLANKET INSULATION
Double wrapped around the dome

SUPERWOOL+ Non-Ceramic Fibre Matting dome insulation
Top grade 128kg/m^3 density for maximum performance
To contain heat within the dome the best possible material is high density fibre matting. Our brand of matting is chosen for it’s “Industry Best” thermal performance and non-ceramic non-hazardous composition.
Thermal conductivity 0.08W/mK at 400ºC* (Used as a double wrap, so Very Very good)

– LOOSE FILL INSULATION
To fill any cavities in oven structure

Vermiculite Granules
Additional loose fill expanded vermiculite chips for pouring around the insulated dome. Ensures that any last chance of convected heat loss is prevented within the oven housing.

– CHIMNEY
Insulated flue pipe or Single wall pipe

Phone 01279 813591 to discuss requirements. An outdoor oven in a non-combustible structure uses a single skin stainless steel pipe. Ovens in wooden structures are fine, but require insulated flue pipe.
The Volta 80 works best with a 200mm flue to keep smoke moving quickly and preventing a soot blackened oven front. Volta 100 & 120 require 300mm flue.

* Always compare Thermal insulation figures at the operating temperature of an appliance. Pizza ovens run hot, don’t mistakenly compare room temperature figures.

Oven Model

Volta80

Volta100

Volta120

Skamolex Blue
Calcium silicate
One layer of base insulation
600x1000x25mm
2 boards

£111.20 inc. VAT

3 boards

£166.80 inc. VAT

4 boards

£222.40 inc. VAT

Superwool+ Non-Ceramic Fibre matting
Dome insulation
128kg/m^3 density
610x7320x25mm roll
1 roll

£96.74 inc. VAT

1 roll

£96.74 inc. VAT

1.5 rolls

£145.11 inc. VAT

Vermiculite granules
Dome chamber backfill
100 litre bag
1 bag

£29.09 inc. VAT

1 bag

£29.09 inc. VAT

1 to 2 bags

£29.09 + inc. VAT
